RAINSAFETM STORMWATER MANAGEMENT SYSTEMS

CubicM3 is Irelands leading provider of sustainably engineered stormwater management solutions. For over 20 years, we have been sourcing leading products in this area and have successfully completed thousands of projects here, in the UK, the Middle East and Australia.

Stormwater management has become increasingly topical. With Climate Change continuing to drive extreme weather patterns, it is more important than ever to ensure compliance with local regulations, protect your development and avoid down-stream flooding and pollution. With a team of in-house engineers and technicians we can help you to do this by providing full design capability, installation and maintenance services.

CubicM3 can provide all aspects of your storm management system including storage volume using RainSafe chambers for both retention/attenuation and detention/infiltration systems depending on your specific needs. We also provide permeable and impermeable liners, up-stream pollution interceptors to remove both solids and liquid pollutants and down-stream flow-control devices to regulate release of your stormwater into the broader network or local water courses.

RainSafe Stormwater Attenuation

In 2022 we took the decision to apply our experience and expertise into developing our own range of attenuation chambers and incorporating a number of innovations to meet market needs. Following an extensive and rigorous independent testing we proudly launched RainSafe attenuation chambers in 2024.

Manufactured in France and fully certified to the most stringent industry performance standards, RainSafe has quickly become the engineers’ preferred choice due to its market-leading performance and lower carbon footprint by comparison to other options. Our customers love RainSafe’s value and short lead times. And our installers appreciate the lighter-weight designs, easier handling  and connection features to aid assembly.

RainSafe comes in two sizes that meet virtually all attenuation tank design scenarios:

RT-1140
RT-720
Product Dimension /
Specification* :
RT-1140RT-720
Height (mm)1140720
Length Installed (mm)18802175
Width (mm)19501150
Weight (kg)48.526.4
Installed Chamber Capacity (m3)2.671.16
Min. Stone below < 2.5m cover (mm)200150
Min. Stone below > 2.5m cover (mm)250200
Min. Cover under Green Area (mm)450450
Min. Cover under Trafficked Area (mm)600600
Max. Cover (mm)40004500
Min. Spacing between Rows (mm)150150
RainSafe Installation Guide must be followed

RainSafe stormwater system advantages:

Independently tested and CSTB certified to highest industry standards.
Market-leading load-bearing capacity – can be used under motorways, carparks, loading bays.
Manufactured in France for short lead times and low carbon footprint.

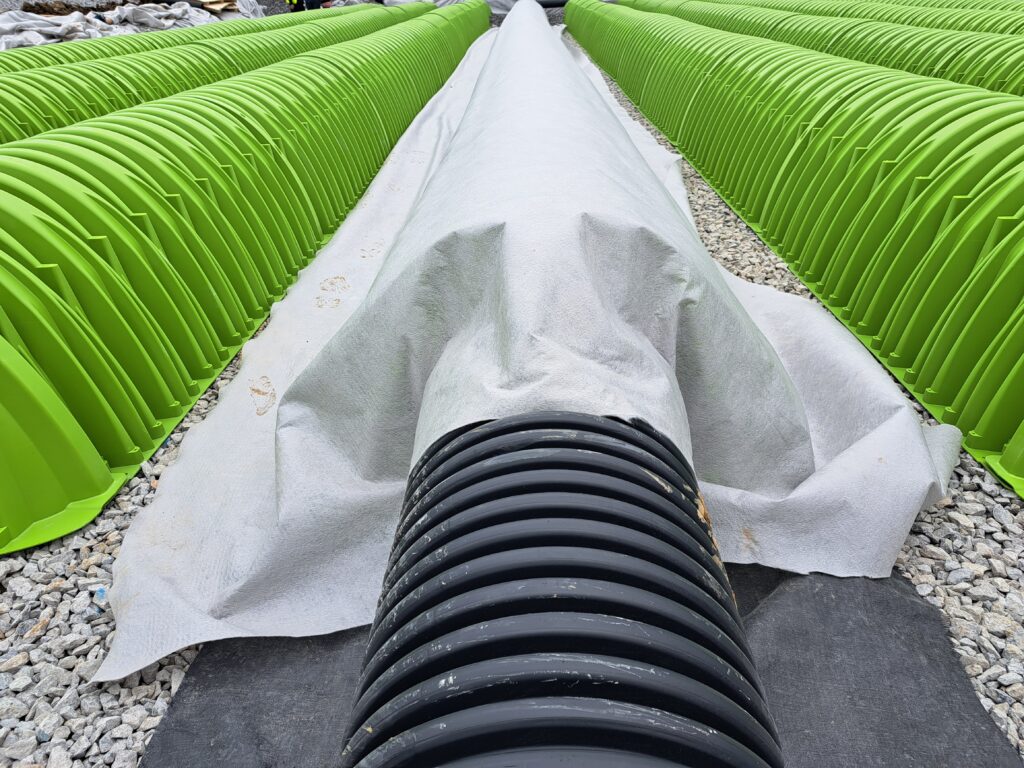

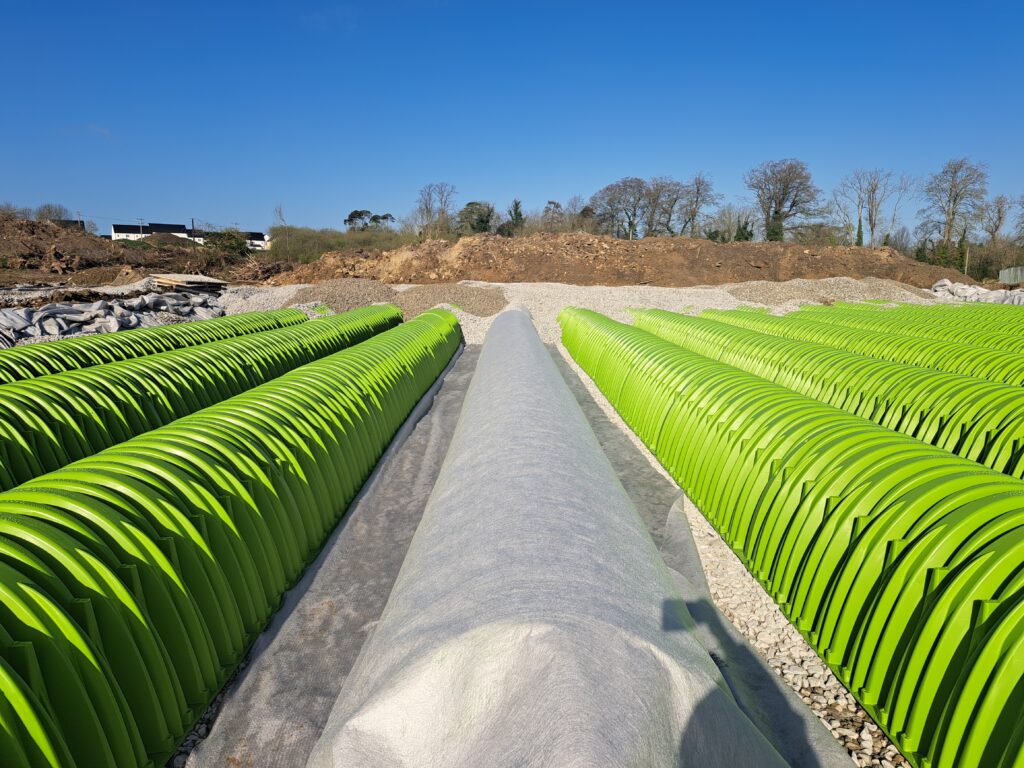

Fully maintainable thanks to Separator Row.
Complies with EU Health and Safety Manual Handling guidelines…
Efficient nesting for reduced transport costs and minimised site footprint.

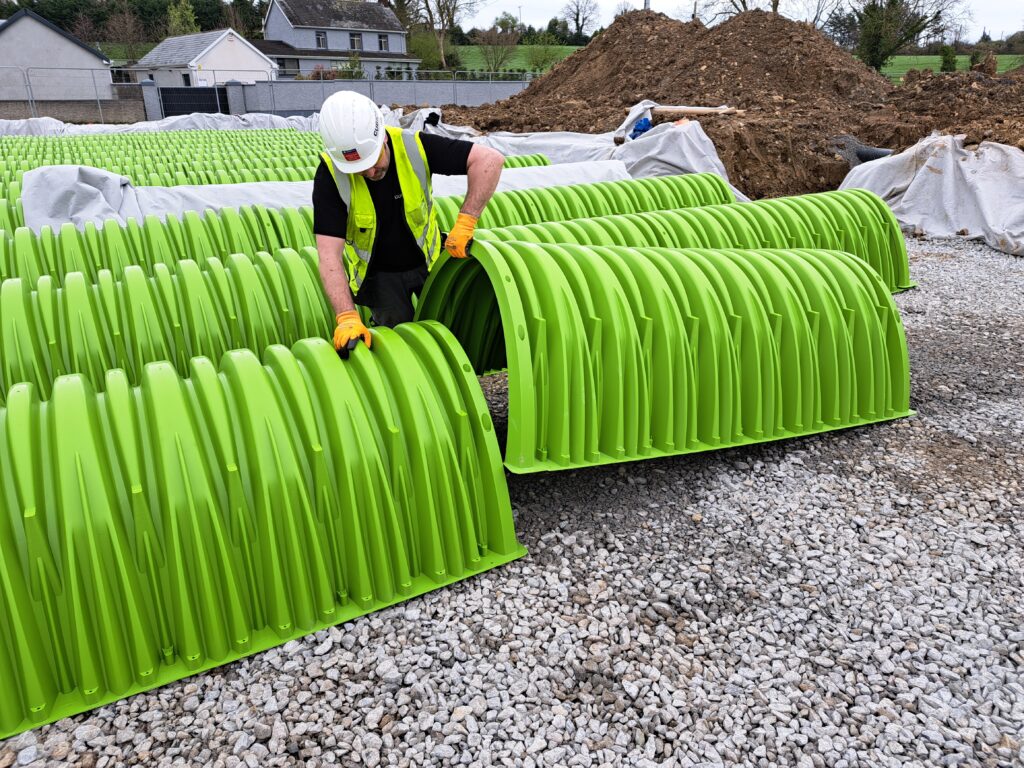

Quick and easy installation with built-in connectors to ensure snug fit and improved alignment.
Patented features to improved water circulation within tanks.

Ancillary Stormwater Management Products:

Geotextiles and geogrids
Oil Separators
SurfSep Gross Pollutant Traps
Flow Control Units
